xxUTF: Unicode Normalization at Speed

xxUTF provides highly optimized Unicode normalization and case folding routines for UTF-8 and UTF-16 using SIMD. All in a small, simple C library. It never allocates memory, does not depend on libc, cannot fail, and most importantly, is insanely fast. It is a direct replacement for utf8proc and the relevant parts of ICU4C.

I've been working on this project for a long time. This post comes along with the alpha (v0.1.0) release of the project. In it, I will walk through what xxUTF does, provide basic usage of the C API, and dicuss future plans for the project.

I will also write a follow-up post dedicated to explaining the SIMD algorithms and optimizations I came up with to achieve the speed that I did.

Unicode Normalization

Unicode normalization is a process that transforms strings of Unicode text (i.e. UTF-8, UTF-16¹, or UTF-32 encoded strings). I will now explain the problem that normalization solves and how it works.

Consider the character "é". This character corresponds to a code point defined by the Unicode standard. A code point is just a number that identifies a character. In this particular case, "é" has a code point value of 0x00E9.²

The point is, the computer reads 0x00E9 and renders "é" in accordance. Now try running this Python code:

print(chr(0x00E9))
print(chr(0x0065) + chr(0x0301))

You should see "é" printed twice. But clearly, we are printing two different strings. What's going on?

It turns out that there are two ways to render "é": either with 0x00E9 or with 0x0065, 0x0301. Taking a look at the latter, we will find that 0x0065 maps to "e" (ASCII letter e) and 0x0301 maps to "◌́" (combining acute mark). The renderer reads this sequence of characters and places the combining mark on top of the base character (thus creating "é"), whereas in the first example, the renderer just maps 0x00E9 directly to "é".

There are good reasons that both these methods of rendering "é" exist, and it turns out that there are many code points that have similar behavior. But this can also lead to problems, as in:

print(chr(0x00E9) == chr(0x0065) + chr(0x0301))

evaluates to false even though both strings look the exact same, which is a bad property. We don't have the following relationship:

This is where Unicode normalization comes in. Normalization guarantees that:

Essentially, if two strings look the same, they will be the same if normalization is applied to both sides.

Normalization Forms

Although I used the term "normalization" loosely in the last section, there are actually four different ways to normalize a string defined by the Unicode standard (yet they all have the property I concluded with in the last section):

• NFD (decomposition)
• NFC (composition)
• NFKD (compatibility decomposition)
• NFKC (compatibility composition)

Returning to the previous example, NFD normalization expands code points where possible. For example, we have:

import unicodedata

assert unicodedata.normalize("NFD", chr(0x00E9)) == chr(0x0065) + chr(0x0301)
print("Assertion passed!")

So 0x00E9 gets expanded to 0x0065, 0x0301. NFC does the opposite:

import unicodedata

assert unicodedata.normalize("NFC", chr(0x0065) + chr(0x0301)) == chr(0x00E9)
print("Assertion passed!")

NFKD and NFKC are special variants of NFD and NFC respectively. All they do is turn special characters like "①" and "⑴" into "1".³

Case Folding

Have you ever checked that two strings are equal by converting them to lowercase? This is called caseless matching. Although the lowercase implementation is common, it is not the proper operation for caseless matching when writing in certain languages. For example, the German letter "ß" uppercases to "SS". So, if we were doing case insensitive comparison, we would want "ß" to equal "SS". This is not the case:

print("ß".lower() == "SS".lower())

Thus we need case folding, which is the proper way to do caseless matching:

print("ß".casefold() == "SS".casefold())

Usage

xxUTF implements conversion to all normalization forms as well as case folding for UTF-8 and UTF-16 encoded Unicode text. It is distributed as an amalgamated C file with a single header, similar to what SQLite does. You can download the amalgamation on the releases page of the GitHub repository.

Using the C API looks like this:

// Get a good upper bound on the size of the output after NFC normalization
size_t out_length_bound = xxutf_normalize_utf8_nfc_length(input, input_length);
// Allocate according to out_length_bound
uint8_t *out = malloc(out_length_bound + 1);
// Get the actual number of bytes written (<= out_length_bound)
size_t out_length = xxutf_normalize_utf8_nfc(input, out);
// xxUTF does not write a NUL byte
out[out_length] = '\0';
printf("NFC normalized to: '%s'", out);

More documentation lives on the GitHub repository.

Benchmarks

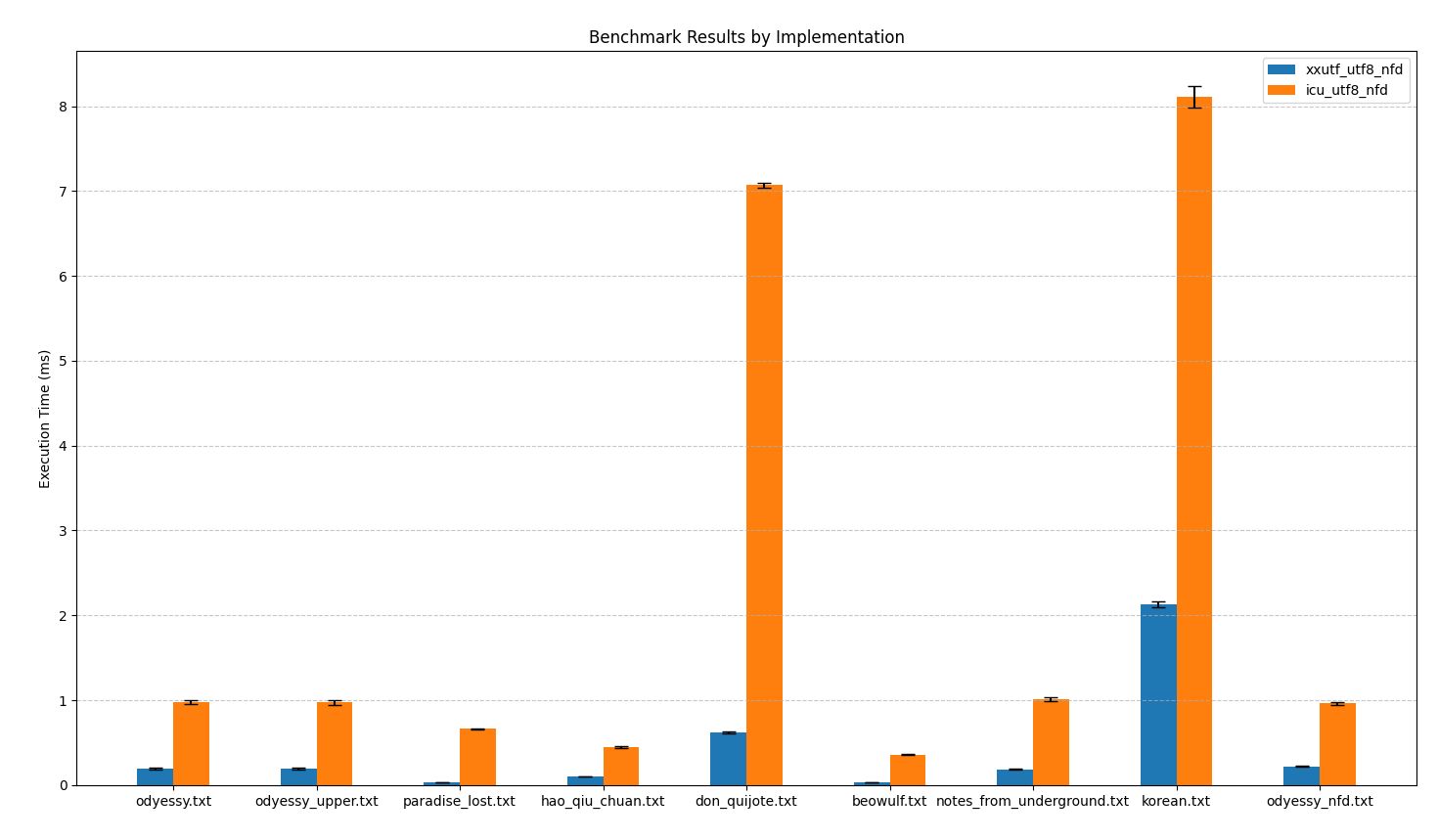

xxUTF has the fastest open source implementations of Unicode normalization and case folding algorithms by far. Here are benchmark results for UTF-8 NFD normalization, run on a machine supporting Arm Neon, using inputs from real-world texts (blue is xxUTF):

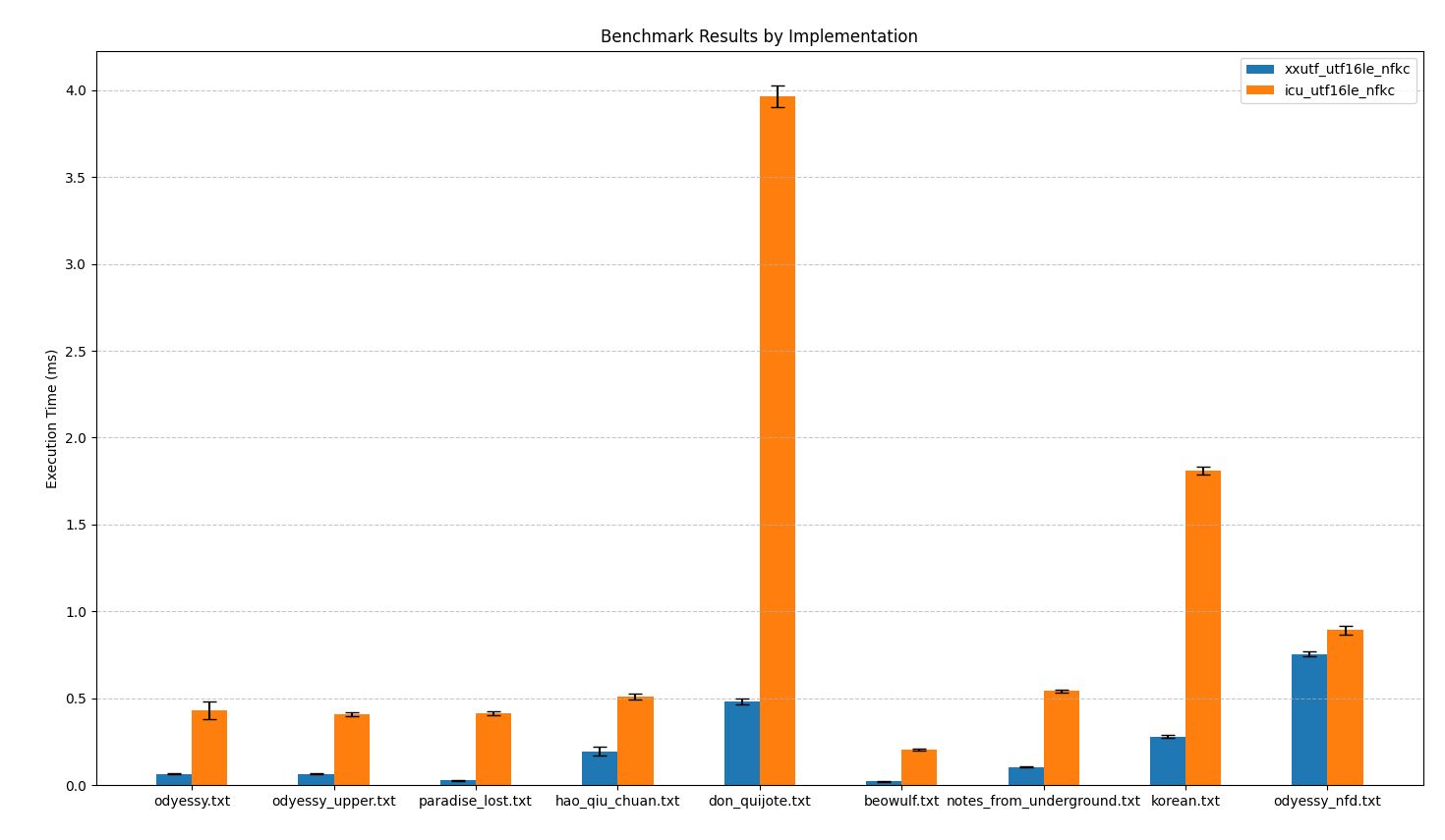

These are the results for NFKC normalization on UTF-16LE text:

If you're curious and want to run your own tests on xxUTF's speed, check out the documentation. Also see the benchmarks/ directory for details.

Future Plans

xxUTF still has a long way to go before being production-ready. Mainly, it needs to support more SIMD instruction sets. As of right now, only Arm Neon has been implemented. The good news is that xxUTF is still the fastest implementation even without SIMD.

Also, xxUTF needs to be safe. Although the fuzzer helps, I haven't done a thorough security check of the project. Because xxUTF has simple functionality, there are not many avenues for vulnerabilities, but I am sure they exist in the project.

Wrap Up

I hope you enjoyed this post! If you want to encourage the development of xxUTF, star the project on GitHub. Version 0.1.0 stands as a proof of the speed possible using SIMD, and there is more to come. xxUTF is ready for usage in hobby projects and non-critical applications, but there is a lot to be done, as mentioned earlier.

If you have any questions or comments, submit an issue on this website's GitHub repository!

Credits

The simdutf project is one of the leading examples of a production-grade SIMD C library. I also used some of their techniques for parsing UTF-8, which is cited in the source code in the relevant places.

AI was not used to write the xxUTF library, nor for the creation of the vectorized algorithms that power xxUTF's speed. However, I did use LLMs to generate some supplementary scripts and programs. All usages are cited in the source code.
