Writing an ASan Runtime in Zig #1
In a previous post, I wrote a high-level overview of how LLVM's Address Sanitizer works, as well as providing a small snippet of a custom ASan runtime I am writing in Zig. That post particularly focused on the core algorithm, which explains how ASan can track complex memory violations with relatively little overhead.
In this post, I will do a deep dive into an important component of the runtime: the memory quarantine.
Why Quarantine?
In the first post of this series, I gave a brief implementation of how the
__asan_free function works. In pseudocode:
def free(ptr):
header = getHeader(ptr)
if header.state == FREED:
abort("Double free!")
header.state = FREED
setPoisoned(getAllocBytes(header))You can read the actual implementation
here. You might notice a key part is
missing from this implmentation of free: actually releasing memory back to the
OS! In other words, with this implementation, no memory is ever re-used across
the instrumented program's lifetime. There is a simple reason for this, though:
if we actually released memory, we wouldn't be able to detect
use-after-frees!1
But there is an obvious problem with keeping memory around forever. For enormous pieces of software that ASan instruments like Chromium, it is unsustainable to never re-use memory. To try to get the best of both worlds, ASan has the notion of a memory quarantine.
The Idea
The idea of the quarantine is this: all freed allocations are held in a giant
queue. The queue is bounded so that the sum of the sizes of all allocations
living in the queue stays below a certain size. Once new memory is freed (via
__asan_free), old memory is popped out of the queue to stay below the bound.

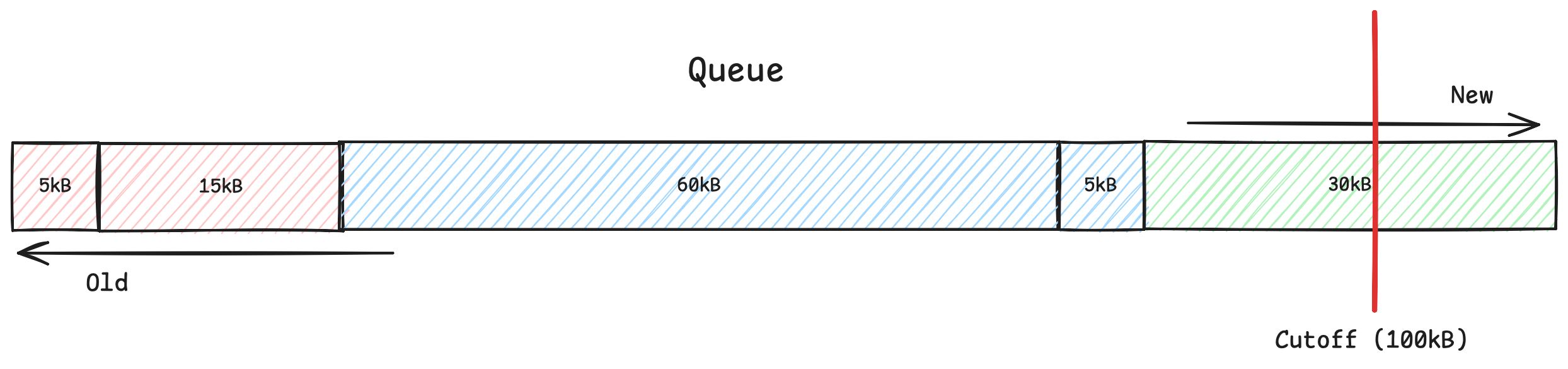

In the picture, the 5kB and 15kB allocations are being flushed to make room for the new 30kB allocation. Allocations that are flushed from the queue are released to the operating system.
This model ensures that memory stays around long enough so that use-after-frees
are usually detected.2 The size of the quarantine is usually around 256
megabytes, but ASan allows it to be set arbitrarily using the
quarantine_size_mb flag.3
Synchronization
There is a big performance problem with the idea I just introduced. Every time
an allocation is freed using __asan_free, the runtime has to add the
allocation to a big queue. To prevent data races in a multi-threaded program,
this means that the queue needs to be locked and unlocked on every free.
Since it is very possible that many threads are constantly allocating and freeing at the same time, the global quarantine is a very contentious resource. Thus, to competition between threads, we need to figure out a way to minimize the amount of locking.

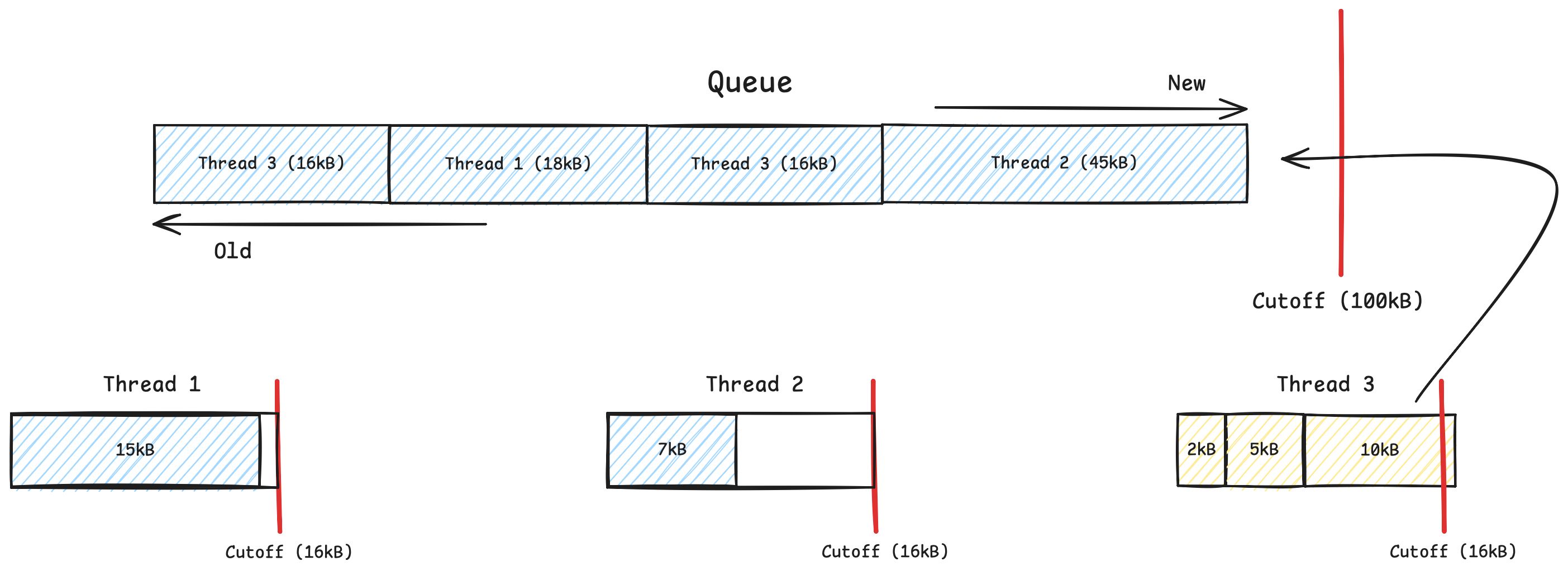

One clever approach to solving this problem is introducing local quarantines. Every thread can have its own individual quarantine for when it frees allocations; all freed allocations can enter this fast buffer in a lock-free manner. Once the local quarantine becomes larger than a certain size, the thread locks the global quarantine and flushes the entire local quarantine into the queue.
This approach makes reduces the amount of locking while still preserving the original behavior of the quarantine idea.
Implementation
In this section, I'll share some simplified snippets of how the quarantine system works in Zig ASan. First, we define the global quarantine:
/// Global quarantine for allocations. Thread-safe but not lock free. Does not actually free any
/// memory.
const Quarantine = struct {
size: usize = 0,
queue: std.Deque(Batch) = .empty,
mutex: std.Io.Mutex = .init,
evict_limit: usize,
const Batch = struct {
allocs: []const *AllocHeader,
size: usize,
};
pub fn init(evict_limit: usize) Quarantine {
return .{ .evict_limit = evict_limit };
}
pub fn deinit(self: *Quarantine, gpa: std.mem.Allocator) void {
if (!self.mutex.tryLock()) {
// A thread is holding this mutex... we should just quit to avoid undefined behavior.
// The memory will leak
return;
}
self.size = 0;
self.queue.deinit(gpa);
self.mutex = .init;
}
/// Flush all remaining allocations. Returns all batches that must be released back to the
/// OS as a result of this operation. Caller owns all memory.
pub fn flush(self: *Quarantine, io: std.Io, gpa: std.mem.Allocator) std.mem.Allocator.Error![]const Batch {
self.mutex.lock(io) catch @panic("mutex lock should not be cancelled");
defer self.mutex.unlock(io);
var freed: std.ArrayList(Batch) = .empty;
errdefer freed.deinit(gpa);
while (self.queue.popFront()) |batch| {
try freed.append(gpa, batch);
self.size -= batch.size;
}
assert(self.size == 0);
return try freed.toOwnedSlice(gpa);
}
/// Receive a batch into the quarantine. Returns all batches that must be released back to the
/// OS as a result of this operation. Caller owns all memory.
pub fn batchReceive(
self: *Quarantine,
io: std.Io,
gpa: std.mem.Allocator,
batch: Batch,
) std.mem.Allocator.Error![]const Batch {
self.mutex.lock(io) catch @panic("mutex lock should not be cancelled");
defer self.mutex.unlock(io);
try self.queue.pushBack(gpa, batch);
self.size += batch.size;
var freed: std.ArrayList(Batch) = .empty;
errdefer freed.deinit(gpa);
while (self.size > self.evict_limit) {
const front = self.queue.popFront() orelse break;
self.size -= front.size;
try freed.append(gpa, front);
}
return try freed.toOwnedSlice(gpa);
}
};Notice that we lock every time we call batchReceive. Our per-thread
quarantines should submit batches to the global quarantine. I went over the
definition of AllocHeader here. Next,
here is the definition of the per-thread quarantines:
/// Local quarantine for allocations. Not thread-safe. Does not actually free any memory.
const FastQuarantine = struct {
size: usize = 0,
allocs: std.ArrayList(*AllocHeader) = .empty,
pub const empty: FastQuarantine = .{};
/// Minimum size of the thread local quarantine before flushing to the global quarantine
const flush_limit = 1 << 20; // 1MB
/// Add an allocation to the fast quarantine. Adds to global quarantine and flushes if
/// flush_limit is reached. Returns any batches that need to be freed. Caller owns all
/// returned memory. Does not actually free anything.
pub fn addAlloc(
self: *FastQuarantine,
io: std.Io,
gpa: std.mem.Allocator,
global: *Quarantine,
header: *AllocHeader,
) std.mem.Allocator.Error![]const Quarantine.Batch {
try self.allocs.append(gpa, header);
self.size += header.fullAllocSize();
if (self.size > flush_limit) {
return self.flush(io, gpa, global);
}
return &.{};
}
/// Flush all memory into the global quarantine as a batch. Returns any batches that must
/// be released back to the OS as a result of this operation.
pub fn flush(
self: *FastQuarantine,
io: std.Io,
gpa: std.std.mem.Allocator,
global: *Quarantine,
) std.mem.Allocator.Error![]const Quarantine.Batch {
const allocs = try gpa.dupe(*AllocHeader, self.allocs.items);
errdefer gpa.free(allocs);
const freed = try global.batchReceive(io, gpa, .{
.allocs = allocs,
.size = self.size,
});
self.allocs.clearRetainingCapacity();
self.size = 0;
return freed;
}
};
threadlocal var local_quarantine: FastQuarantine = .empty;Now I will provide the full Zig implementation of __asan_free, using this new
quarantine system:
fn __asan_free(ptr: ?*anyopaque) void {
// Same as before:
const non_null = ptr orelse return;
const bytes: [*]u8 = @ptrCast(non_null);
const header: *AllocHeader = @ptrCast(@alignCast(non_null - 16));
if (header.state.cmpxchgStrong(.alive, .freed, .acquire, .monotonic)) |state| {
return switch (state) {
.freed => {
const stderr = std.debug.lockStderr(&.{}).terminal();
defer std.debug.unlockStderr();
std.debug.writeStackTrace(&header.trace.stack_trace, stderr) catch {};
@panic("double free!");
},
.alive => unreachable,
};
}
const size_low: usize = @intCast(header.user_size_low);
const size_high: usize = @intCast(header.user_size_high);
const size = size_low | (size_high << 32);
setPoisoned(bytes[0..size]);
// New!
const needs_free = local_quarantine.addAlloc(io, backing_allocator, &global_quarantine, header) catch blk: {
// Worse case, just free the allocation
backing_allocator.free(header.allocation());
break :blk &.{};
};
// Every batch here has been evicted by the global quarantine
for (needs_free) |batch| {
// Actually release all allocations in the batch
for (batch.allocs) |h| {
// Stop tracking the allocation in shadow memory
setUnpoisoned(alloc);
backing_allocator.free(h.allocation());
}
backing_allocator.free(batch.allocs);
}
backing_allocator.free(needs_free);
}Here I am assuming io, backing_allocator, and global_quarantine are global
variables. The allocation method returns the full allocation of the
AllocHeader as described in the last post.4
Lastly, you may be wondering what happens when a thread exits. In order to not
leak memory, the FastQuarantine.flush should be called! This can be done using
per-thread destructors. The POSIX standard defines per-thread destructors via
the pthread_key API, and Windows might have an equivalent (I don't really
know).
Conclusion
I hope you enjoyed this post! While it is only a small component of how ASan works, the memory quarantine is an interesting concept that studying in-depth can be rewarding.
As always, if you have any questions, comments, or found an issue, send me an email at mail@dzfrias.dev.
I hope to finish Zig Asan in a few months once I iron out all the nuances of the runtime. There are a lot of small but important behaviors to consider when instrumenting complex programs!
You might be tempted to think that it is okay to release the memory and continue tracking it using shadow memory. This is not safe, though. Once we release memory, we should consider acccessing it as undefined behavior. ↩︎
This model is not perfect. It fails to detect applications using memory a very, very long time after it has been freed, but it catches most cases. This is an okay trade-off for performance. ↩︎
ASan has a lot of useful flags like this. You can find a big list of them in the Address Sanitizer Wiki. It is an outdated resource, but it is still the best list I could find. ↩︎
In the last post, I didn't fully give you the definition of
allocation. I left it as an exercise! ↩︎
